TI PEB
Expansion Cards


Texas Instruments produced several expansion cards which fit into the PEB. All of these cards were encased in heavy duty aluminum cases which also acted as heat sinks. Later the cases were changed to plastic, in a move I assume, to save costs. Most (except the P-Code) can still be had without too much trouble.

Click on any of the cards below for a large picture of the card and addtional information.

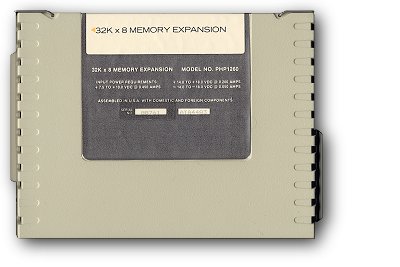

Memory Expansion
Model No. PHP1260

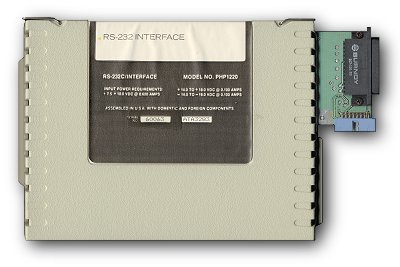

RS232 Interface
Model No.

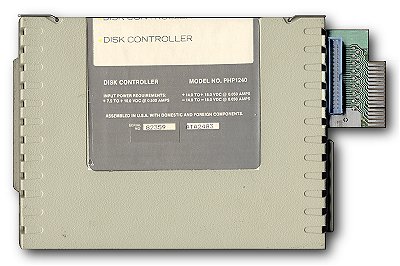

Disk Memory System
Model No. PHP1240

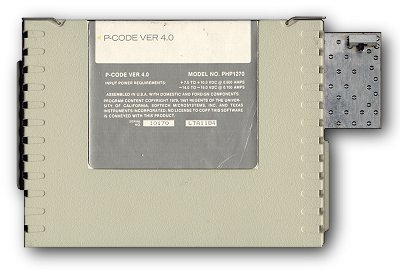

P-Code Version 4.0
Model No. PHP1270

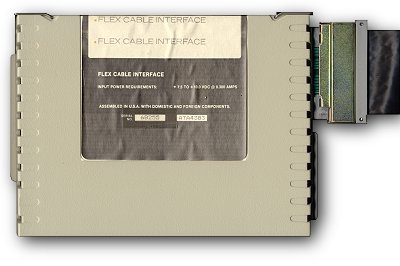

Flex Cable
Interface
